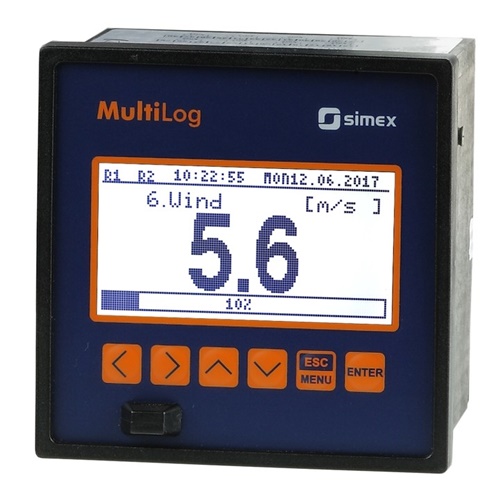

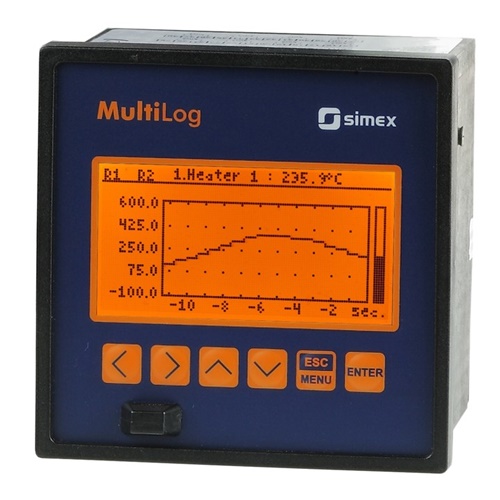

Data recorder รุ่น MultiLog SRD-99
Specification
| Number of inputs |
1
4
8
|
| Input type |
current (mA)
voltage (V)
voltage (mV)
RTD
TC
|
| Input range |
0/4 to 20 mA
0 to 60 mV, 0 to 75 mV, 0 to 100 mV, 0 to 150 mV
0/1 to 5V, 0/2 to 10V
Pt100, Pt500, Pt1000: -100 to +600°C
TC K: -200 to +1370°C, S: -50...+1768°C, J: -210 to +1200°C, T: -200 to +400°C, N: -200 to +1300°C, R: -50 to +1768°C, B: +250 to +1820°C, E: -200 to +1000°C
|
| Output type |
electronic relay NO, 24V AC/35V DC, max. 200 mA
|
| Power supply |
16 to 35V AC, 19 to 50V DC
85 to 260V AC/DC
10 to 13V AC, 11 to 16V DC
|
| Display |
LCD, 128 x 64 pixels, graphic, amber or white backlight
|
| Memory capacity |
internal 8 MB
|
| Data recording period |
1 s / 2 s / 5 s / 10 s / 15 s / 20 s / 30 s / 1 min / 2 min / 5 min / 10 min / 15 min / 20 min / 30 min / 60 min
|
| Communication Interface |
RS-485 / Modbus RTU
USB Host port
USB PC port
|
| Transmission parameters |
1200 to 115200 bit/s, 8N1 / 8N2
|
| Operating temperature |
0 to +50°C
-20 to +50°C
|
| Protection class |
IP 40 (front USB Host)
IP 54 (front USB Host + transparent door with key STD-99/141)
IP 65 (rear USB Host)
optional integrated frame for panel cut-out sealing
|
| Case material |
NORYL-GFN2S E1
|
| Mounting |
panel
|
| Case dimensions |
96 x 96 x 100 mm
|
