Indicators / controllers
>>
PID controllers
[1]
>>
4

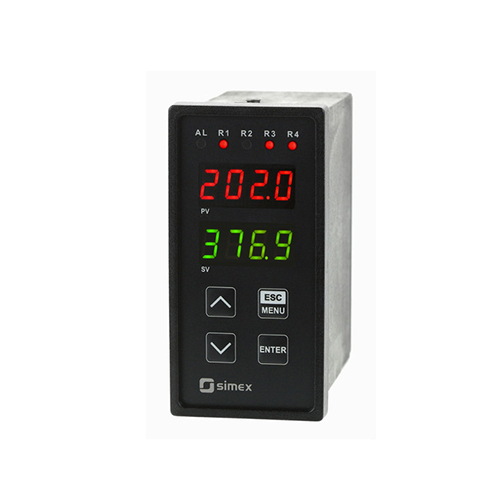

PID controllers รุ่น PUR-49D
.jpg)
Specification
| Number of inputs |
1
|
| Input type |
universal
|
| Input range |
0/4...20 mA
0/1...5V, 0/2...10V
0...60 mV, 0...75 mV, 0...100 mV, 0...150 mV
Pt100, Pt500, Pt1000: -100...+600°C
TC K: -200...+1370°C, S: -50...+1768°C, J: -210...+1200°C, T: -200...+400°C, N: -200...+1300°C, R: -50...+1768°C, B: +250...+1820°C, E: -200...+1000°C
0...300Ω, 0...3kΩ
|
| Output type |
depends on configuration:
relay 5A/250V AC (resistance)
relay 3A/250V AC (reactance)
Open Collector: I=30 mA, U=30V DC, P=100 mW
0/4...20 mA: active current, operating range 0...24 mA max., load resistance 700 Ω max., resolution 13 bit
4...20 mA: passive current, isolated, operating range 2,8...24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit
0/1...5V, 0/2...10V: active voltage, operating range 0...11V max., load resistance min. 2000 Ω, resolution 13 bit
|
| Power supply |
16...35V AC, 19...50V DC
85..260V AC/DC
|
| Display |
LED, dual: 4 x 9 mm (PV) + 4 x 9 mm (SV), red/green or green/red
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
1200...115200 bit/s, 8N1 / 8N2
|
| Operating temperature |
0...+50°C
-20…+50°C
|
| Protection class |
IP 20 (case and connection clips)
IP 65 (front)
optional integrated frame for panel cut-out sealing
|
| Case material |
NORYL-GFN2S E1
|
| Mounting |
panel
|
| Case dimensions |
48 x 96 x 100 mm
|
